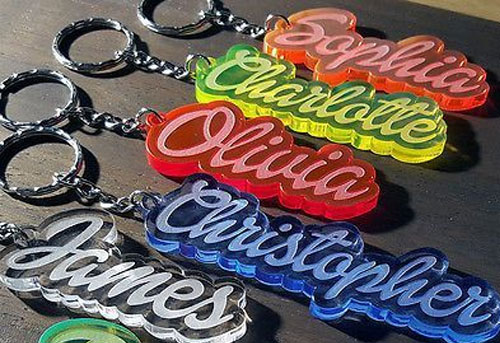

Thinking about using a laser engraver for plastic projects at home? Whether you’re customizing acrylic keychains, labeling plastic bins, or etching your logo on ABS or PET, it’s totally possible — if you use the right type of laser and settings.
In this post, we’ll walk through:
- What plastics can be engraved safely
- Common beginner mistakes (and how to fix them)
- Laser settings that actually work
- Which laser engraver is best for clean, no-burn results
Let’s get into it.
What Plastics Can You Engrave with a Laser?
Before anything else — not all plastics are laser-safe. Some will burn, some will melt, وغيرها (like PVC) can release toxic gas that damages your laser and your lungs.
Good plastics for laser engraving:
- أكريليك (PMMA) – Great for signs, سلاسل المفاتيح, العلامات
- حيوان أليف / PETG – Used in packaging, cards, display cases
- عضلات المعدة – Good for prototypes, labels
- البولي – Works, but may discolor (test first)
Avoid these:
- بولي كلوريد الفينيل / الفينيل – Releases chlorine gas when lasered
- Polystyrene – Melts and smells terrible
- HDPE / LDPE – May warp or give uneven burns
للنصيحة: Always check for “laser-safe” labels when buying plastic sheets.
My First Attempt Looked Burnt. لماذا?
You’re not alone. The most common issues people run into when using a laser engraver on plastic are:
| مشكلة | What’s Going Wrong |
|---|---|
| Plastic melts or curls | Power too high or speed too slow |
| Burn marks / soot | Diode laser not ideal for clear plastic |
| Fumes or smell | Material is not laser-safe (likely PVC) |
| Edges look rough | Dirty lens, poor focus, or wrong speed |
Laser Settings That Work (Tested with ComMarker OMNI 1)
If you’re using a حفارة ليزر للأشعة فوق البنفسجية مثل ال كومماركر أومني 1, أنت محظوظ: UV beams don’t burn plastic — they break the surface photochemically. وهذا يعني no melting, و no discoloration.
Here are some baseline settings I used for different plastics:
| مادة | سرعة (مم/ثانية) | قوة (%) | تكرار (كيلو هرتز) | ملحوظات |
|---|---|---|---|---|
| أكريليك | 500 | 30 | 30 | Use masking tape for crisp lines |
| PETG | 600 | 20 | 40 | No assist air needed |
| عضلات المعدة | 300 | 25 | 35 | Go lighter to avoid burn tint |
| البولي | 200 | 20 | 20 | May need multiple passes |
Always test your settings on a scrap piece before starting a full project.
Which Laser Engraver Should You Use for Plastics?
If your goal is engraving plastic cleanly and safely, here are two real-world options I’ve used:

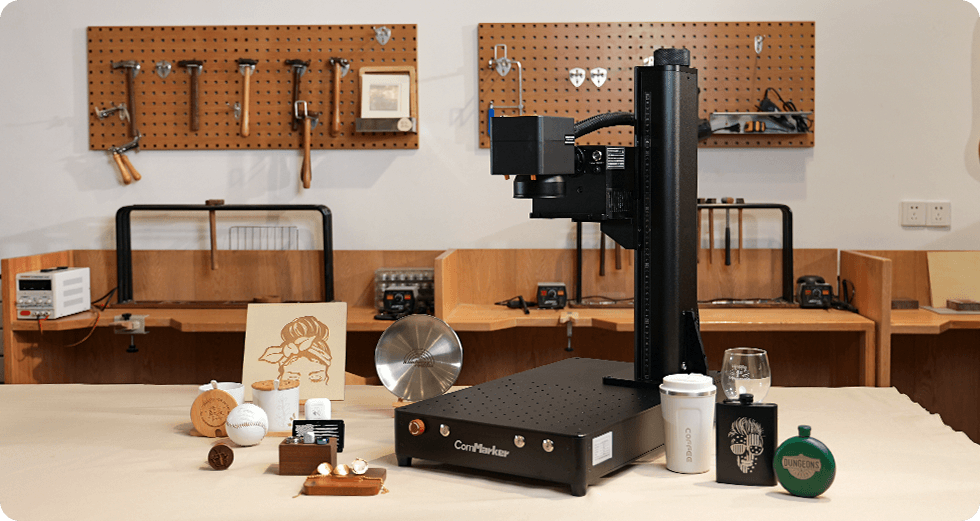

كومماركر أومني 1 ماكينة النقش بالليزر فوق البنفسجية
- Why it works: Cold UV laser = no melting, لا علامات الحروق
- Great for: أكريليك, clear plastics, التفاصيل الدقيقة
- Bonus: Very little smoke or smell
- Downside: Doesn’t cut deep — it’s for surface engraving
ComMarker B6 MOPA Fiber Laser
- Why it works: سريع, great for colored plastics and coated metals
- Warning: Not ideal for clear acrylic unless it’s painted or masked
- Pro tip: Use grayscale mode for logos and patterns
Common Questions
س: Why does my diode laser not engrave plastic well?
ليزر ديود (blue light) often pass through clear materials like acrylic without engraving. Try painting the surface black or upgrading to a UV laser.
س: Do I need air assist for plastic?
Not usually. It can blow fumes and melt residue around. If needed, use it gently.
س: How do I avoid ghosting or double images?
Make sure your material is taped down or secured with a jig — even a small shift will blur the design.

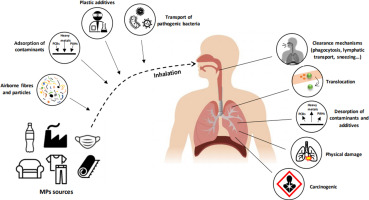

س: Is plastic engraving dangerous?
Only if you use unsafe materials (like PVC) or engrave in a non-ventilated area. Always use a fume extractor or exhaust system.
Final Tips for DIY Plastic Engraving
✅ Use UV for clear plastics – no melting, no smell
✅ Secure your workpiece – especially on round or small pieces
✅ Clean your lens weekly – plastic vapor builds up fast
✅ Mask acrylic with transfer tape – cleaner edges every time
✅ Don’t guess your settings – run a material test grid first
Laser Engraving Plastic Is Easier Than You Think
With the right machine and safe materials, engraving plastic is one of the most rewarding DIY applications. Whether you’re making gifts, customizing parts, or launching an Etsy side hustle, أ laser engraver for plastic can deliver sharp, النتائج المهنية.
If you’re just starting out, ال كومماركر أومني 1 الأشعة فوق البنفسجية is hands-down the best choice for precision, سهولة الاستخدام, and safety with plastic materials.
👉 Explore the OMNI 1 now and get ready to engrave cleaner, sharper plastic projects: متجر Omni 1 »
