ELECTRIC LIFTING
ComMarker B4-50w equips with a concealed lifting motor to ensure spot-on focusing.enabling users to operate smoothly and significantly enhancing the final marking result.Particularly designed for beginners to use easily.
ULTIMATE USER EXPERIENCE.
EVERYWHERE DETAILS
All aluminum body, anodized surface treatment

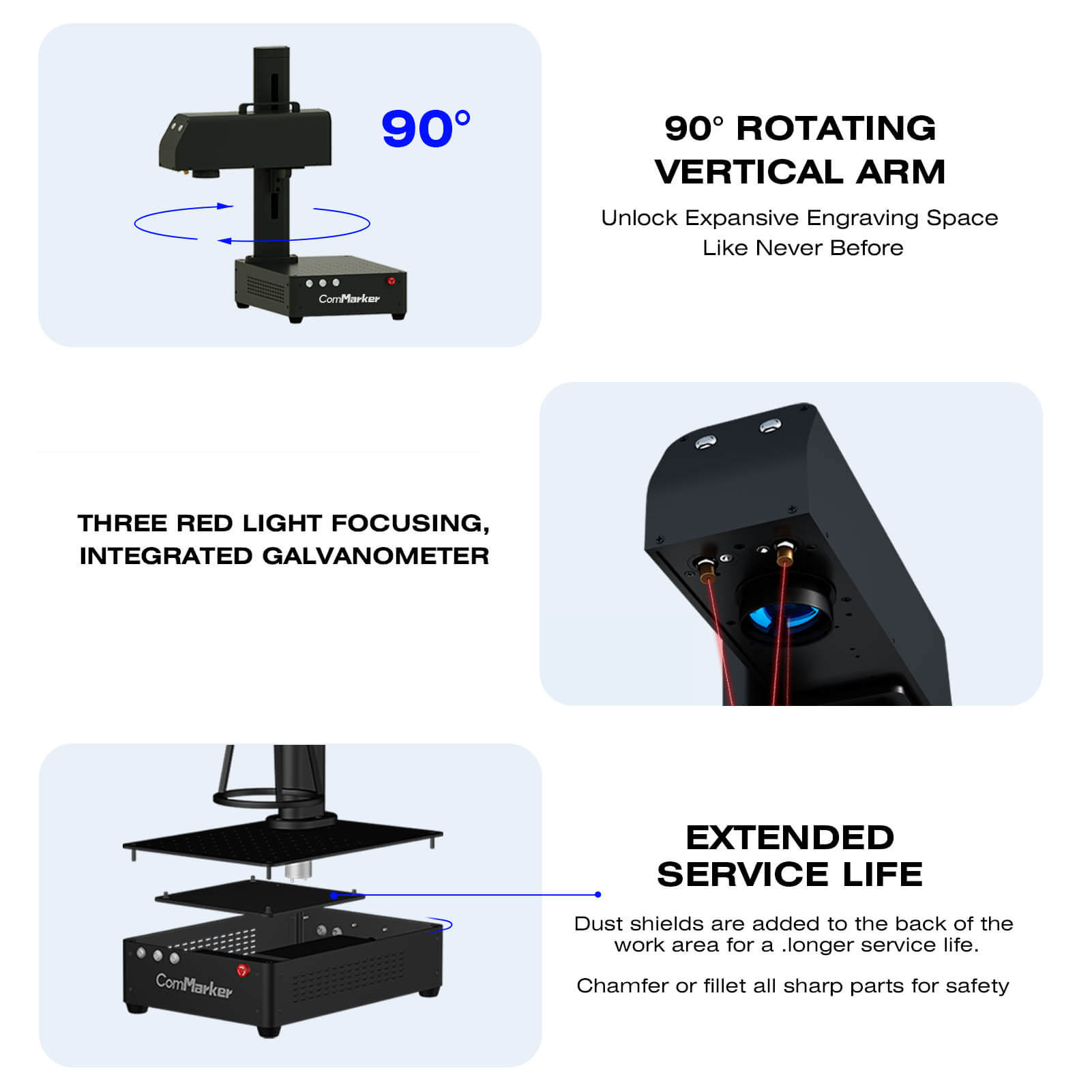

90°ROTATING
VERTICAL ARM
Unlock Expansive Engraving Space
Like Never Before
THREE RED LIGHT FOCUSING
INTEGRATED GALVANOMETER
EXTENDED
SERVICE LIFE
Dust shields are added to the back of the
work area for a .longer service life.
Chamfer or fillet all sharp parts for safety

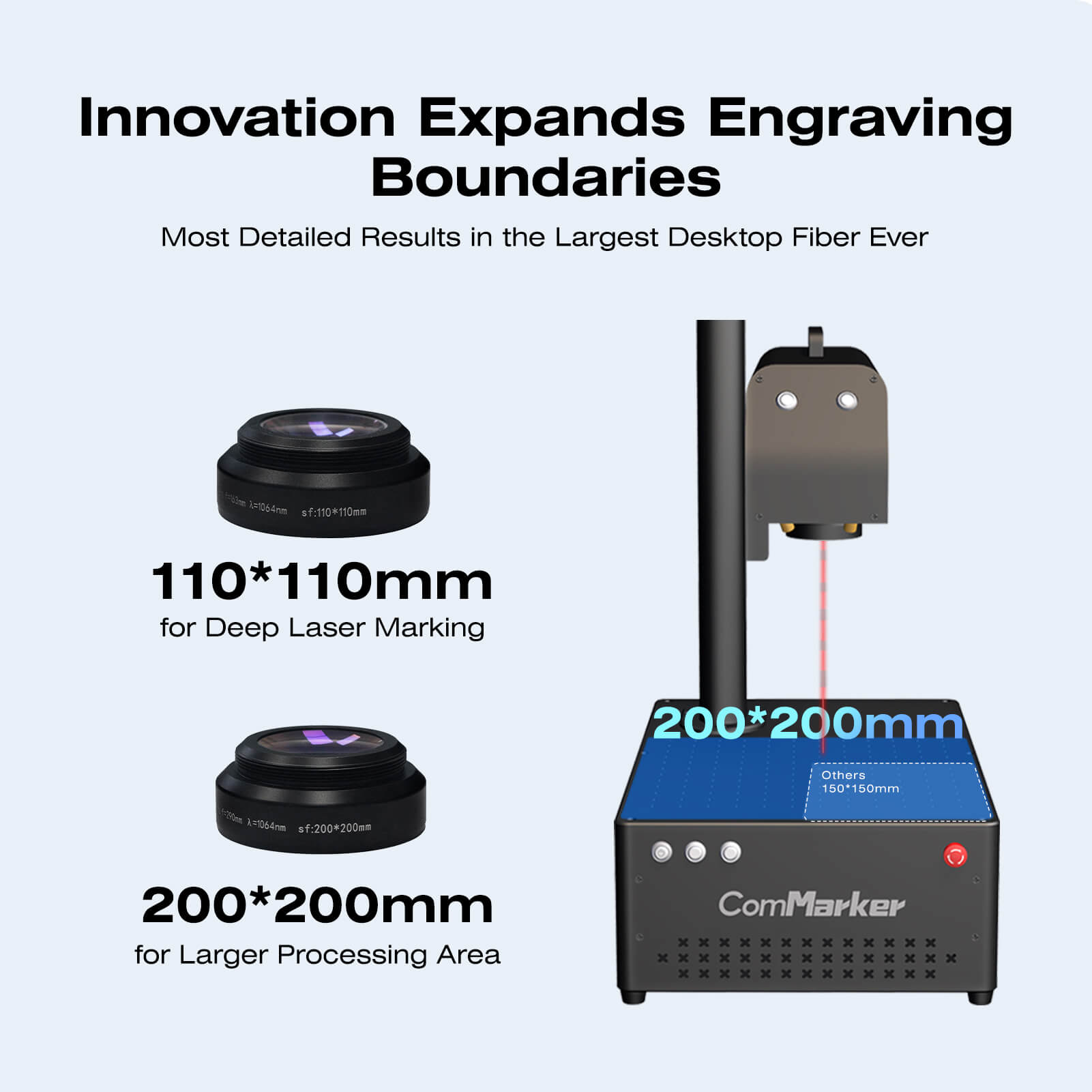

innovation Expands Engraving
Boundaries
Most Detailed Results in the Largest Desktop Fiber Ever
innovation Expands Engraving Boundaries
Most Detailed Results in the Largest Desktop Fiber Ever
intricate Details
With Absolute Precision
High precision marking, the printed line is only
0.01mm wide.
Super Cutting Ability
Effortlessly Cuts Thicker Metals Ranging to 2mm
Depth With 3D Results
Redefining Industry Standards And Emphasizing Our
Commitment To Quality And Innovation.
More Than your lmagination
We believe that time is money, and high power saves you time.
B4 can easily Achieve Both Cleaning And Welding.
Endless Possibility with ComMarker B4-100w
Empowered software for your
seamless workflow
Satisfies all your creative needs from beginner to advanced.
and is compatible with EZCAD and LightBurn.
360'CYLINDRICAL ROTATING ENGRAVING
Wide compatible with 95% industrial rotary axis in the market. 360
Rotating Engraving,Unlimited Your Creativity

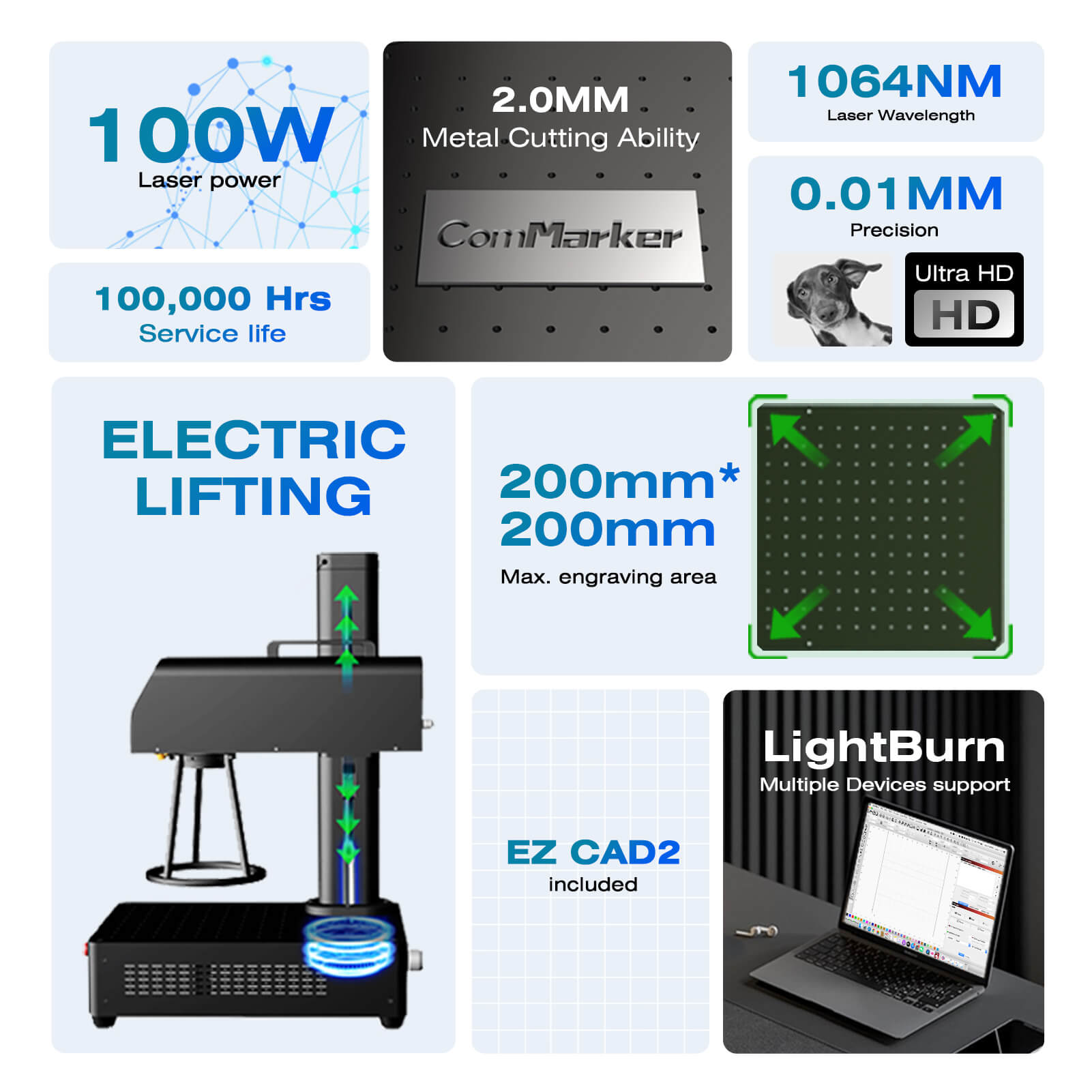

Specifications
|
Type |
Details |
|---|---|
|
Model |
ComMarker B4 |
|
Laser Source
|
Max 100W 1064nm |
|
Engraving Accuracy |
0.01mm |
|
Engraving Speed |
0~15.000mm/s |
|
Metal Cutting |
2mm |
|
Service Life |
100.000 Hrs |
|
Spot size |
45um(11*11cm field lens) |
|
Marking Area |
11*11cm(4.3*4.3inch) |
|
System Supported |
EZ CAD2(Compatible with |
|
Graphic Format Supported |
BMP,GIFJJPG,JPEG,DXF,DST |
FAQ
ComMarker’s B4 100W Fiber Laser Machines are designed to handle a wide range of materials, including metals, hard plastic, stone, leather, and more. This powerful fiber laser machine can also cut up to 3mm stainless steel, aluminum, brass, silver, and gold, making it an essential tool for various industrial applications.
The B4 100W model is equipped with a JPT MOPA M7 Laser source, offering a pulse width range of 1-500nm and a frequency range of 1kHz – 4000kHz. This advanced laser source enhances the machine’s ability to deliver precise and high-quality engravings, particularly on metals and plastics.
The laser source in the B4 100W Fiber Laser Machines has an impressive lifespan of over 100,000 hours, ensuring reliable, long-lasting performance for all your engraving and cutting needs.
The B4 100W Fiber Laser Machines come bundled with EZCad software, which is known for its user-friendly interface and robust features. Additionally, these fiber laser machines are compatible with LightBurn software (not included), offering flexibility in software choice based on user preferences.
The B4 100W Fiber Laser Machines offer a standard work area of 4.3×4.3 inches (110×110 mm) and 7.8×7.8 inches (200×200 mm). For projects requiring different field sizes, additional quartz lenses ranging from 70mm to 300mm can be ordered, ensuring the machine can handle projects of various sizes.
