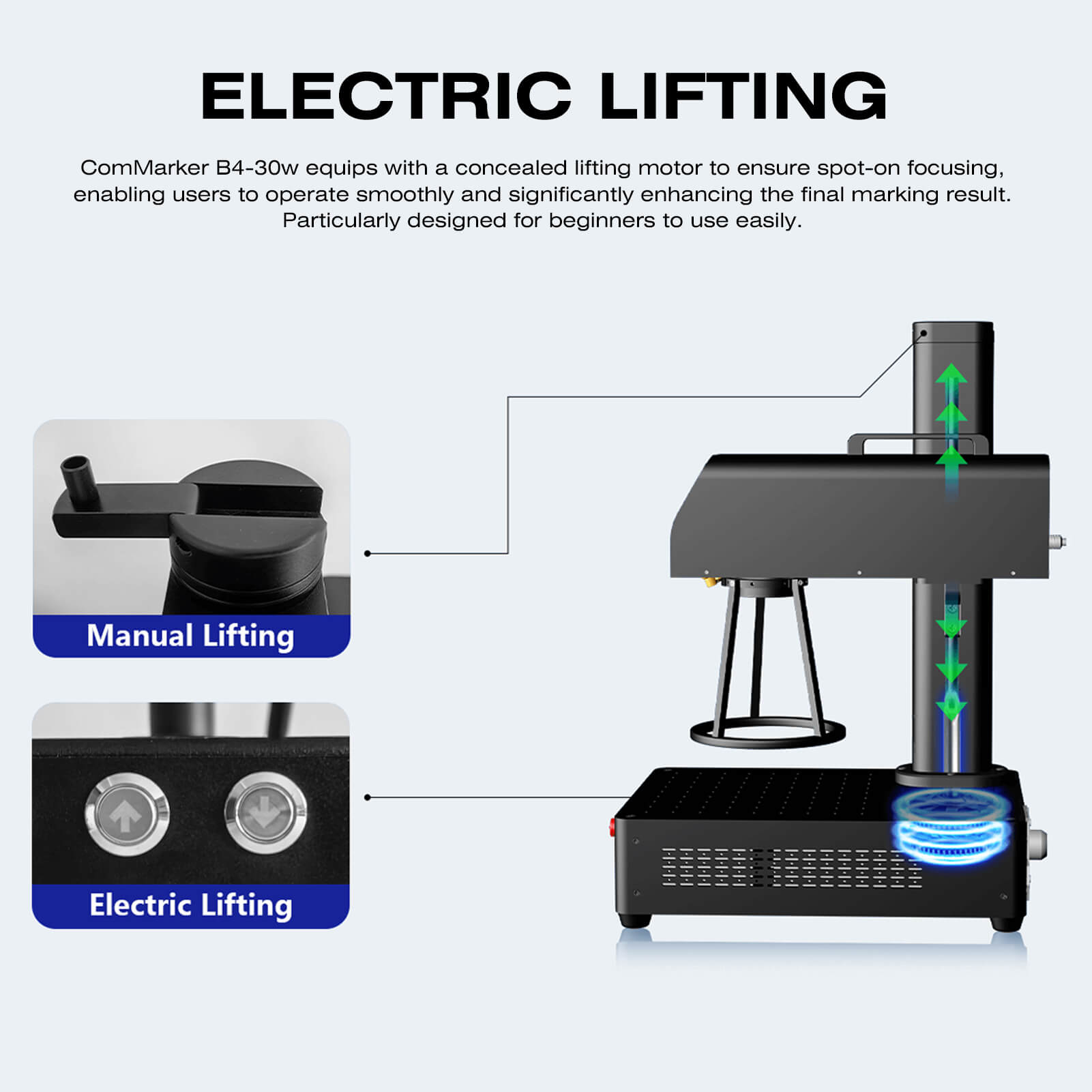

ELECTRIC LIFTING
ComMarker B4-30w equips with a concealed lifting motor to ensure spot-on focusing. enabling users to operate smoothly and significantly enhancing the final marking result.Particularly designed for beginners to use easily.
ULTIMATE USER EXPERIENCE.
EVERYWHERE DETAILS
All aluminum body, anodized surface treatment

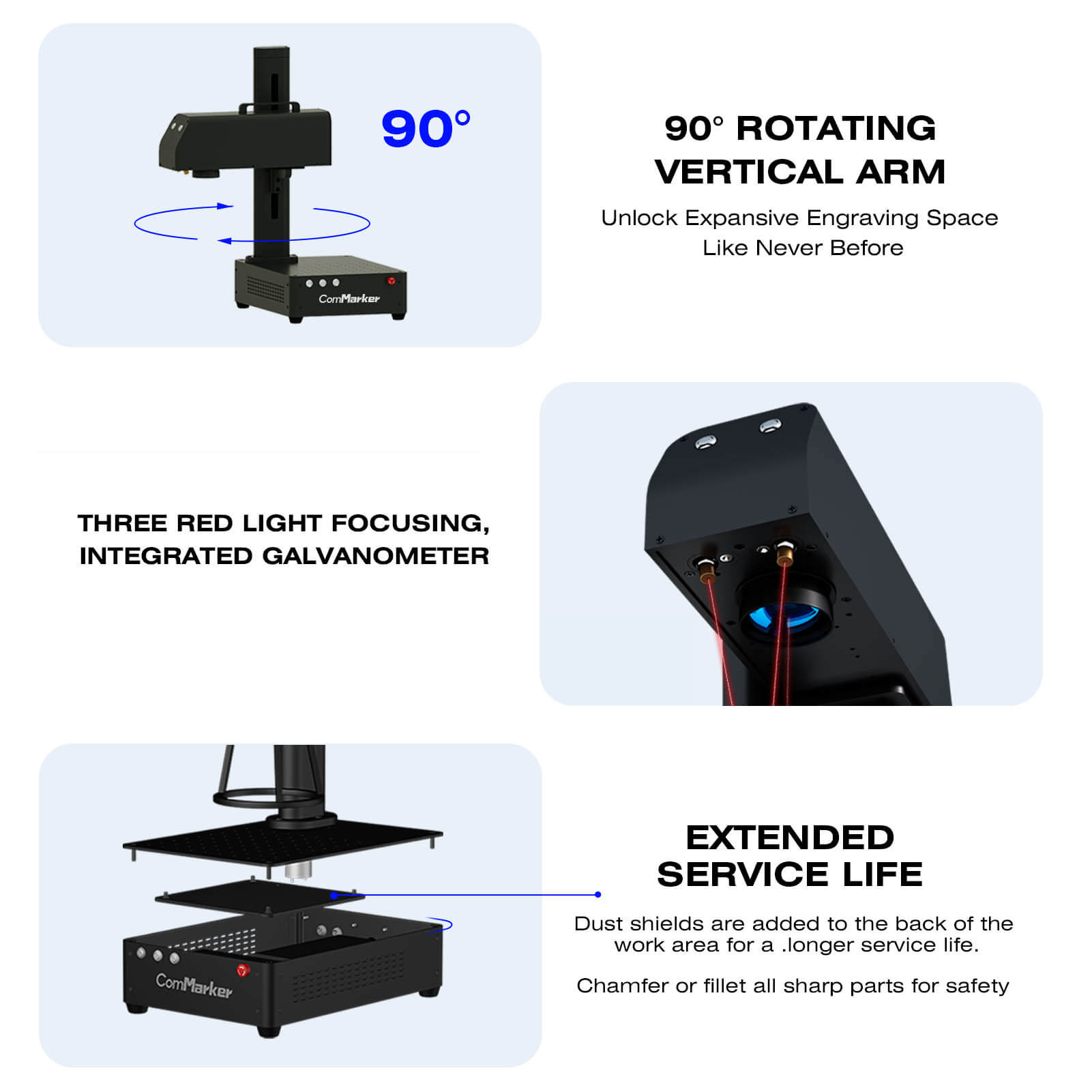

90°ROTATING
VERTICAL ARM
Unlock Expansive Engraving Space
Like Never Before
THREE RED LIGHT FOCUSING
INTEGRATED GALVANOMETER

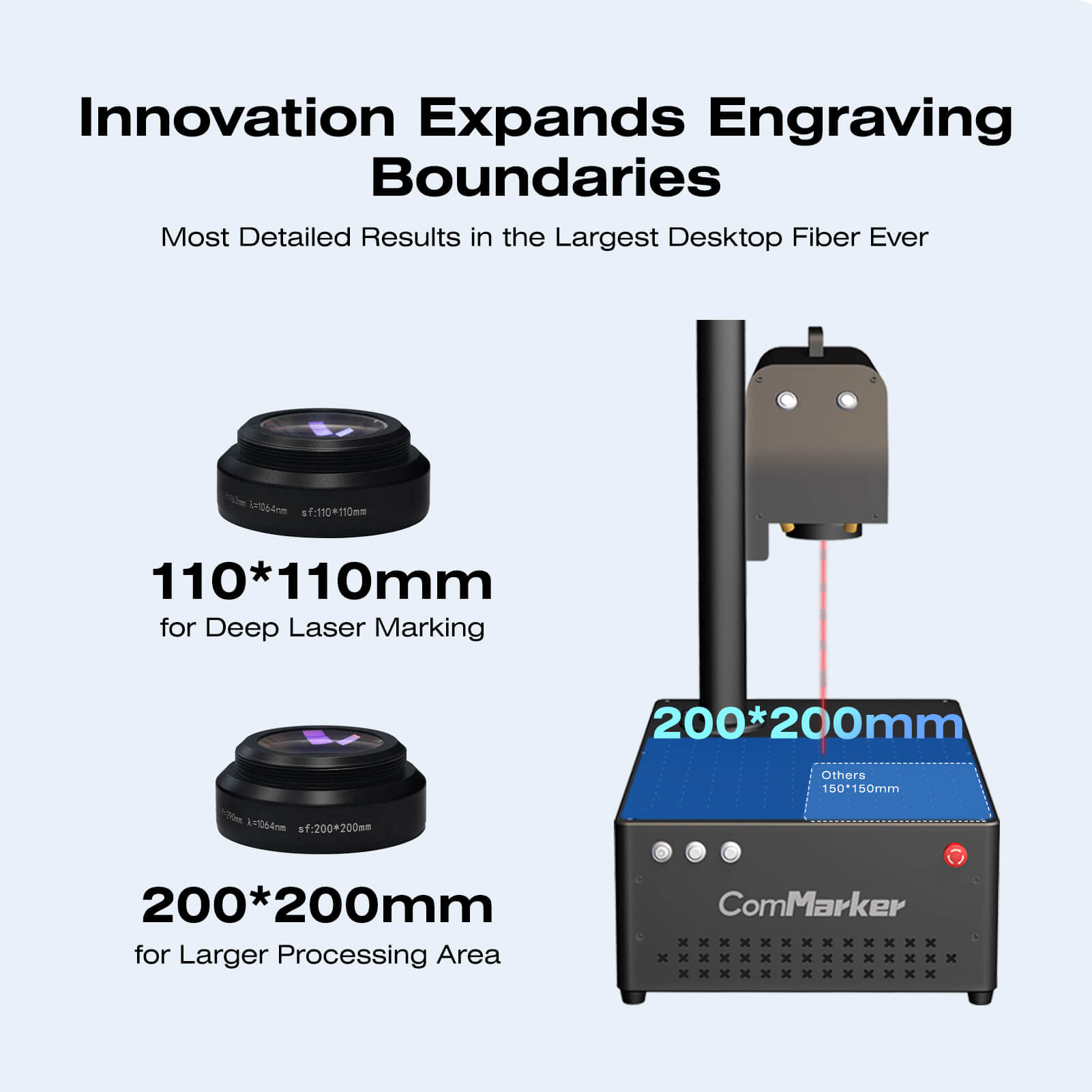

innovation Expands Engraving
Boundaries
Most Detailed Results in the Largest Desktop Fiber Ever
innovation Expands Engraving
Boundaries
Most Detailed Results in the Largest Desktop Fiber Ever
intricate Details
With Absolute Precision
High precision marking, the printed line is only
0.01mm wide.
Endless Possibility with ComMarker B4-30w
Empowered software for your
seamless workflow
Satisfies all your creative needs from beginner to advanced.
and is compatible with EZCAD and LightBurn.
360'CYLINDRICAL ROTATING ENGRAVING
Wide compatible with 95% industrial rotary axis in the market. 360
Rotating Engraving,Unlimited Your Creativity

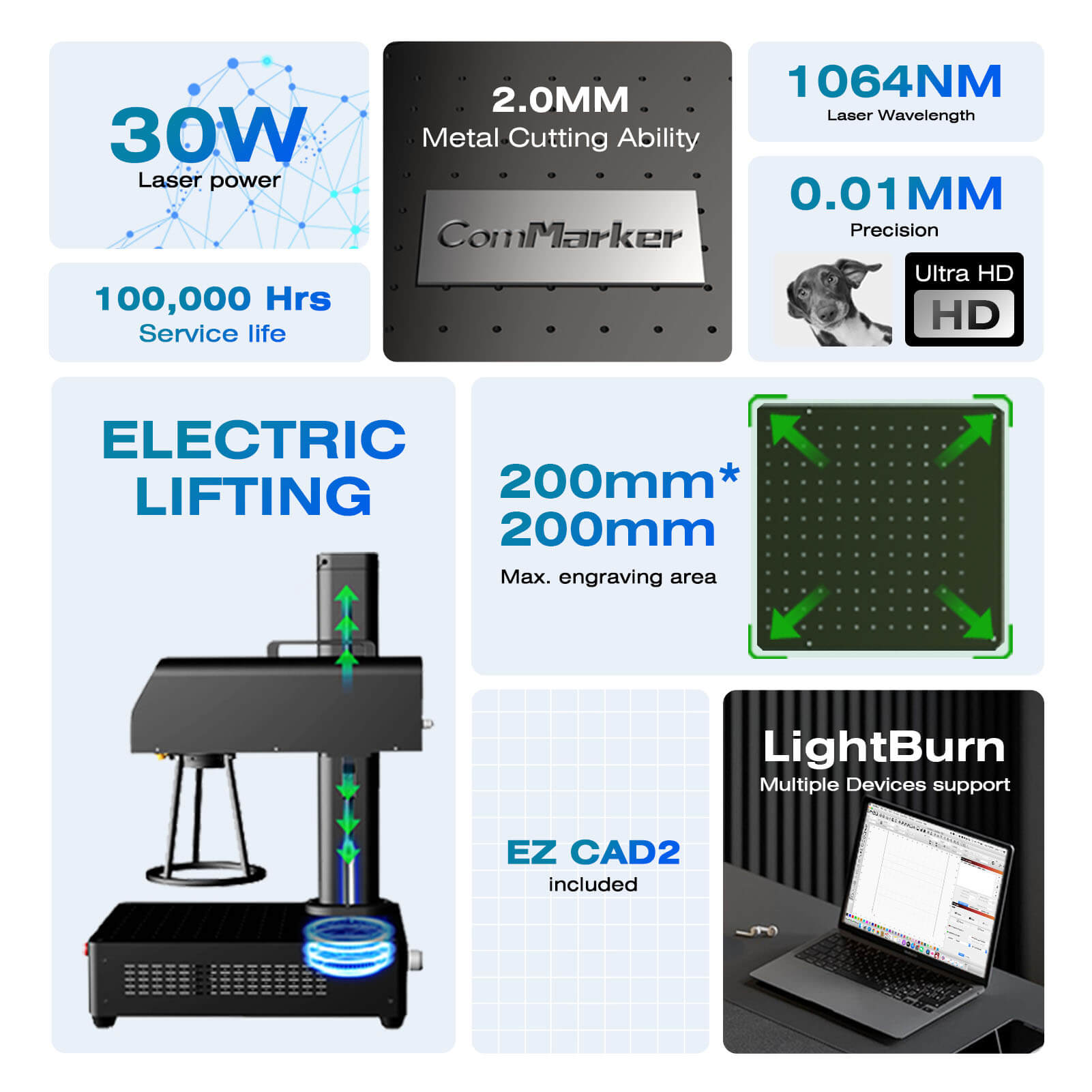

Specifications
|
Type |
Details |
|---|---|
|
Model |
ComMarker B4 |
|
Laser Source
|
Max 30W 1064nm |
|
Engraving Accuracy |
0.01mm |
|
Engraving Speed |
0~15.000mm/s |
|
Metal Cutting |
2mm |
|
Service Life |
100.000 Hrs |
|
Spot size |
45um(11*11cm field lens) |
|
Marking Area |
11*11cm(4.3*4.3inch) |
|
System Supported |
EZ CAD2(Compatible with |
|
Graphic Format Supported |
BMP,GIFJJPG,JPEG,DXF,DST |
FAQ
The ComMarker B4 30W Fiber Laser Engraver Machine is versatile, capable of engraving a wide range of materials, including metals, hard plastics, stone, leather, and more. This adaptability makes it a powerful tool for various industries, providing high-quality results with precision.
The main difference between the B4 and B4 MOPA models lies in their laser technology:
- Q-Switch: Features a non-adjustable pulse width, with a frequency range of 20kHz – 100kHz. This is suitable for high-speed engraving on metals without color variations.
- JPT MOPA: Offers a pulse width of 1-500nm and a frequency range of 1kHz – 4000kHz. The MOPA laser is superior for engraving colors on stainless steel, titanium, black on aluminum, and plastic without burnt yellow color, providing greater accuracy.
The B4 MOPA is ideal if you require color marking on metals and high precision, while the standard fiber laser is better suited for straightforward, high-speed metal engraving. Price and work effect vary significantly between the two models.
The laser source in the B4 30W Fiber Laser Engraver Machine has a lifespan of over 100,000 hours, ensuring reliable, long-lasting performance.
The B4 30W Fiber Laser Engraver comes with EZCad software and is compatible with LightBurn software (not included). This provides a comprehensive suite of tools for managing engraving projects efficiently.
The B4 30W provides a 4.3×4.3 inch (110×110 mm) and 7.8×7.8 inch (200×200 mm) field for various project sizes. Additional lenses ranging from 70mm to 200mm are available upon request to accommodate different engraving needs.
