Quando se trata de marcação de precisão e gravura, ultravioleta (ultravioleta) and fiber lasers each offer unique strengths. ComMarker Omni 1 Gravador a laser UV, B6 MOPA Fiber Laser Engraver, and the high-power Titã 1 Gravador a laser de fibra JPT MOPA cover the full spectrum of engraving needs—from ultra-fine detail on delicate materials to heavy-duty metal cutting. This guide will help you decide between UV and fiber—and, if you need serious power, why Titan 1 might be your best bet.
1. UV vs.. Laser de fibra: Quick Technology Breakdown
| Recurso | Laser UV (Omni 1) | Laser de fibra (Titã 1 JPT MOPA) |
|---|---|---|
| Comprimento de onda | 355 nm (cold light) | 1064 nm (infravermelho) |
| Opções de energia | 5 C / 10 W UV | 60 C / 100 C / 200 C |
| Tamanho do ponto & Resolução | ~0.01 mm spot, 16HD | ~0.02 mm spot, 8K Resolução |
| Heat-Affected Zone (HAZ) | Minimal—no burning or charring | Small but deeper cuts possible |
| Ideal Materials | Plásticos, vidro, cerâmica, metais revestidos, madeira, couro | Metais (aço, alumínio, latão), thicker plastics |
| Melhor para | Ultra-fine, burn-free detail | High-throughput metal engraving & corte |
2. ComMarker Omni 1 Laser UV: Zero-Burn Precision
Why Choose UV?
The Omni 1’s 355 nm UV beam delivers cold-light marking, meaning virtually zero heat-affected zone—critical when you’re engraving:
- Clear acrylic without yellowing
- Vidro without cracks or spidering
- Couro without scorching
Mais, its 16K HD Resolução (0.001 precisão mm) reproduces micro-circuit patterns and ultra-small text.

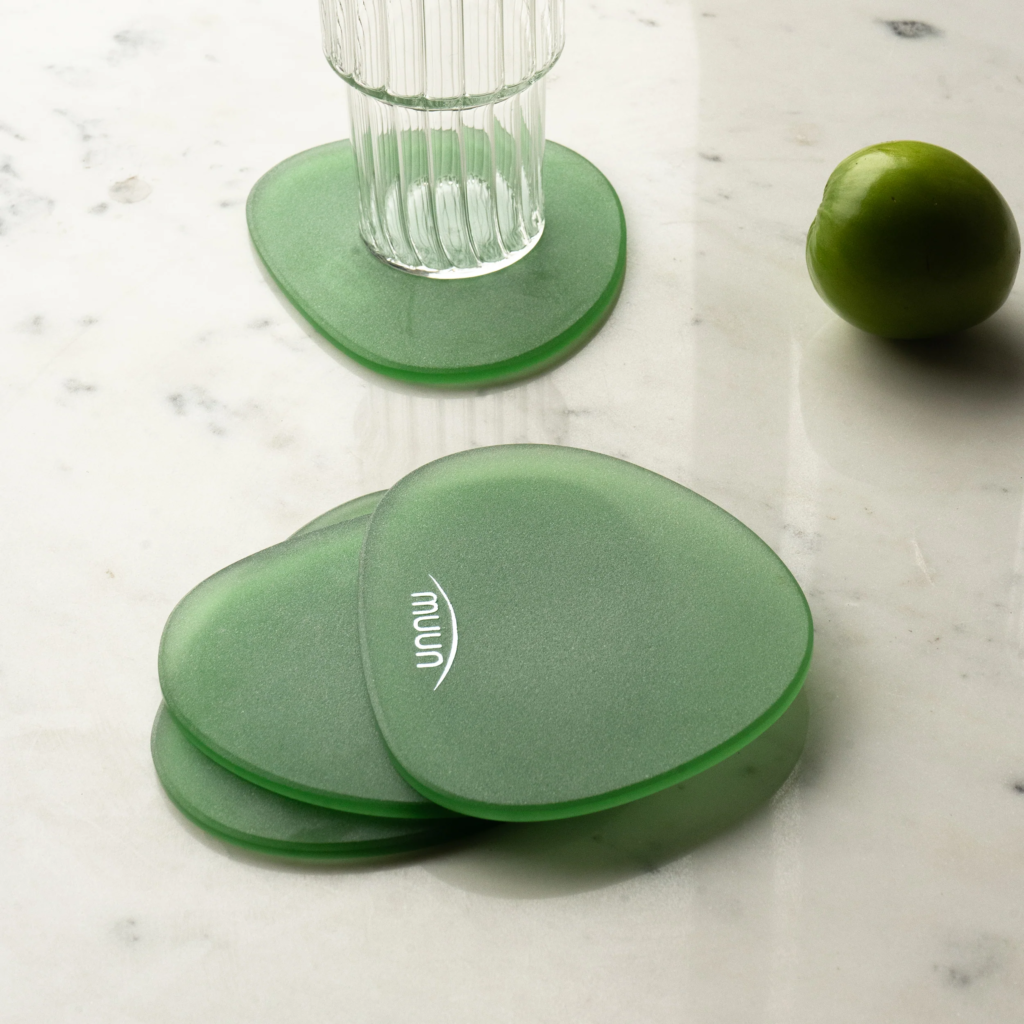

Sample Settings: Frosted Glass Coasters
- Programas: LightBurn
- Poder: 25%
- Velocidade: 300 mm/s
- Frequência: 40 kHz
- Intervalo de linha: 0.03 milímetros
- Passes: 2
Resultado: Sharp, frosted engravings that stand up to dishwashing.
Dicas para solução de problemas
- Faint Marks? Verify auto-focus is within ±0.2 mm of the surface.
- Uneven Frost? Slow speed (200 mm/s) and bump power to 30%.
- Lens Fogging? Add a small PC fan for localized airflow.
Ready for burn-free detail? → Buy Omni 1 Gravador a laser UV
3. ComMarker Titan 1 JPT MOPA Fiber Laser: Industrial-Scale Power
Why Titan 1?
Titan 1’s 200 W MOPA fiber laser is built for heavy manufacturing:
- Deep cutting: slice through up to 5 mm of stainless steel
- 3Gravura D: multi-layer depth control (3D Slice mode)
- Marcação de cores: vivid by tuning pulse width (10–400 ns)
- Speedmax ™: até 15,000 mm/s for high throughput
Sample Settings: Stainless Steel Panel Logos
- Programas: Ezcad2
- Potência Laser: 100% (200 C)
- Velocidade: 500 mm/s
- Frequência: 40 kHz
- Largura do pulso q: 200 ns
- Intervalo de linha: 0.02 milímetros
- Passes: 1

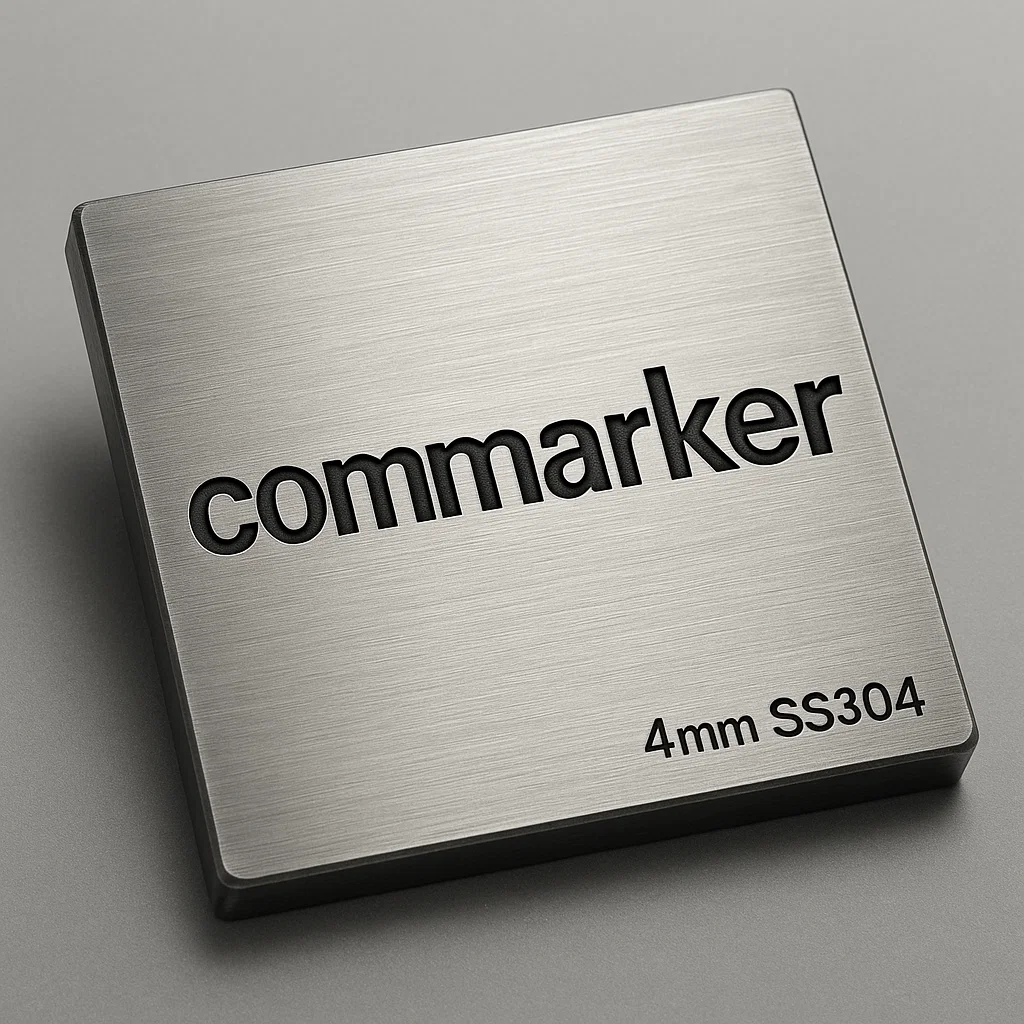

Resultado: Profundo, permanent logos with high edge sharpness on 4 mm SS304.
Dicas para solução de problemas
- Sheet Warping? Use air-assist at 20 PSI to cool edges.
- Profundidade inconsistente? Run “Field Correction” in EZCad2 for bed alignment.
- Color Variations? Adjust pulse width in 10 ns increments for perfect contrast.
Need industrial horsepower? → Shop Titan 1 JPT MOPA Fiber Laser
4. Which Model Matches Your Workflow?
| Shop Type | Recommended Model | Por que funciona |
|---|---|---|
| Presentes personalizados & Crafts | Omni 1 ultravioleta | Burn-free on acrylic, vidro, leather—perfect for personalized items. |
| Joia & Medical Tools | Omni 1 ultravioleta / Titã 1 | UV for micro-detail; Titã 1 for deeper engraving on metals. |
| Heavy Fabrication | Titã 1 | Best for thick-metal cutting, high-volume production. |
| Mixed-Material Shops | Dual-Station (ultravioleta + Titã 1) | Switch between UV finesse and fiber power seamlessly. |
5. Manutenção & Best Practices
- Optics Care: Clean lenses/mirrors every 50 hours using lens-grade isopropyl alcohol.
- Assistência aérea: For fiber on metal, 15–20 PSI reduces scorching and clears slag.
- Software Calibration: Quarterly “Field Correction” in EZCad2 or LightBurn ensures grid accuracy.
- Spare Parts Kit: Keep replacement lenses, espelhos, and a backup fiber module—optics degrade faster under heavy use.
6. Take Action
Whether you need zero-burn micro-precision ou industrial-strength power, ComMarker has you covered:
Elevate your production, meet tight tolerances, and unlock new revenue streams with the world’s leading UV and fiber laser technologies.
